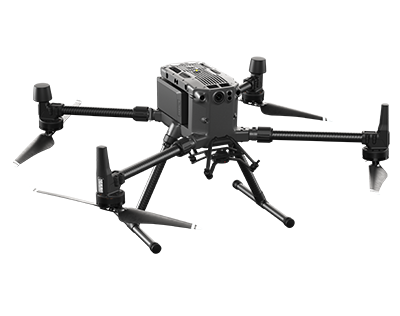

The DJI Matrice 30 combines the strengths of the Matrice 300 RTK and H20 series, as well as the portability of the Mavic 2 Enterprise series, to create a new powerful, compact, and foldable platform. Featuring multi-sensor camera units with high resolution wide angle and zoom cameras, as well as a laser rangefinder and thermal imaging (Matrice 30T only).

​

Powerful Flight Performance:

The Matrice 30 series has a maximum flight time of 41 minutes and a top speed of 82.8 km/h. Winds of up to 54 km/h can be handled by the aircraft. The Matrice 30 is suitable for a wide range of applications, with an operating temperature range of -20° C to 50° C and a maximum service ceiling of 7000m above sea level. Furthermore, the IP55 dust and water resistance rating ensures that the Matrice 30 series is ready for any mission, regardless of the conditions.

​

Compact Design

Numerous inspections and public safety operations necessitate quick reflexes and the ability to fly from multiple locations in a single mission for pilots. In these situations, portability is critical. The M30 is a lightweight and portable camera that weighs only 3.77 kg. When folded, the M30 is small enough to fit inside a backpack and be carried on foot. The M30 gives you the mobility you need to get the job done, whether you're on the front lines of a developing emergency or inspecting infrastructure in a remote location.

​

Superior Sensor Array

The DJI M30 includes an integrated camera gimbal unit with four sensors (three on the M30), similar to the Zenmuse H20T.
A 48 MP zoom camera with 16x optical zoom and 200x max hybrid zoom, as well as a 12 MP wide angle with an 84° field-of-view, are among the sensors. Both visual sensors are capable of shooting high-definition video at 4K resolution at up to 30 frames per second.
A Laser rangefinder is also included, which can measure accurate distances up to 1.2km away. Finally, to round out the sensor suite, the Matrice 30T receives a high resolution 640x512 thermal imaging camera.

​

Flight Safety

The Matrice 30 series has 360-degree obstacle avoidance, as well as dual-vision and ToF sensors on all six sides of the drone. The vision system can detect obstacles up to 38 metres away thanks to the combination of visual and infrared sensors. The Matrice 30 series is safe in all flight conditions thanks to redundant Dual IMU, Compass, GNSS, and batteries. DJI AirSense, which is powered by the built-in ADS-B receiver, is also available on the Matrice 30 series.
A health management system monitors the status of critical components in real time, and if a motor or prop fails, you'll be able to perform a three-prop emergency landing.

​

OcuSync 3 Enterprise

The Matrice 30 series features the latest iteration of the OcuSync Enterprise communication system, OcuSync 3 Enterprise, which supports triple-channel 1080p video transmission and seamless switching between input feeds even in complex environments, is supported by four built-in antennas. Enhance your connection with the DJI Cellular Module, an optional 4G dongle that enables stable video transmission in difficult or remote work environments.

DJI RC Plus
The Matrice 30 series uses an all-new remote controller designed keeping commercial applications in mind. It features IP54 dust and water resistance and is capable of operating in extreme cold and heat -20°C to 50°C. With a long lasting internal battery as well as a hot swap compatible external battery, the RC Plus is can stay operational for long periods of time for uninterrupted flying.

The built-in OcuSync 3.0 Enterprise system features four antennae for stable, long-distance video transmission with two of the antennae being removable. With the combined battery system, the DJI RC Plus features 6 hours of screen-on time. Featuring an incredible peak brightness of 1200 cd/m2 and a high resolution of 1080p, the DJI RC Plus ensures the information on-screen is viewable in all lighting conditons. The built-in tablet runs a customized operating system developed by DJI Enterprise to ensure optimum performance.

If you're performing search and rescue, hazmat response, or an infrastructure inspection, the last thing you want to be doing is scrambling through touch-screen menus to select a critical feature - especially if the weather makes it difficult to do so. More physical buttons than ever before are included on the DJI RC Plus, allowing pilots to develop muscle memory, quickly access important flight features, and enjoy a more seamless flight experience. Six new buttons have been added, each of which is assigned to a different function depending on which camera view is being used. Pilots can seamlessly toggle through different camera views, zoom in and out, and drop PinPoints without having to move their hands away from the control sticks with just a little practice and muscle memory.

DJI TB30 Intelligent Flight Battery & BS30 Charging Station

To meet your mission needs, a smart, portable solution with multiple charging modes is available. The charger can charge four pairs of TB30 Intelligent Flight Batteries and one pair of RC Plus batteries at once, with each pair taking only 30 minutes to charge from 20% to 90%.

The BS30 Intelligent Battery Charging Station features three modes of charging the flight batteries. The first mode, Standard Mode, charges each pair of batteries to 100% one pair at a time. However, keeping batteries fully charged for long periods of time can be harmful to them. Furthermore, batteries charge at a diminishing rate, and the final 10% to get from 90% to 100% takes a long time. As a result, the BS30 Intelligent Charging Station provides two more charging options: Ready-to-Fly Mode and Storage Mode.

Ready-to-Fly Mode quickly charges each pair to 90%, taking less than 30 minutes per pair, and then keeps them at 90% on standby. This is ideal for first responders and emergency teams who require their drones and batteries to be ready at all times. Each pair is charged to 50% in Storage Mode. This is excellent for the battery's longevity.
